Models in Cycles

Hello,
These 3D models had been made in Blender 2.49 version for Project OSCAR 3D model Repository and were rendered in Blender Internal Render engine.
I have re-done the material and lighting of these models in Blender 2.63 version and rendered with Cycles render engine.



Crucible:

 Render output with the basic studio setup:


Crucible Material Setting:
For Crucible Material I have used Mix Shader one is Translucent BSDF and the second is the Diffuse BSDF. I have used Factor 1 and used the following color setting:- R:1.000, G: 0.950, B:0.900


 Ammeter:

Black Plastic Material Setting
Metal Material Setting
For this Red Terminal I have used Diffuse BSDF shader and color values are:
R: 0.06372 , G: 0.001699, B: 0.001699.
For the Number texture I have used the Diffuse BSDF shader and in color i have used Image texture,  in Vector used Texture Coordinate / UV.
For texturing I did the UV mapping first and then i made the scale texture in Photoshop and import it in blender using Image texture.

Brass-nails:


Originally done Blender 2.49 version
Brass Material Setting
First Render in Cycles with 300 samples

Final Render
Final Render with 300 Samples in Cycles

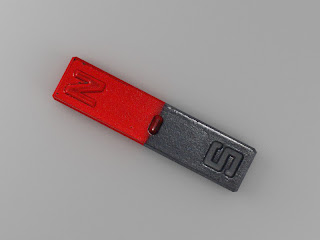

 Bar-magnet:

Previous Render in Blender 2.49
First Render in Cycles
Material Setting

I did the UV mapping in three parts using vertex group, then I have made the Image texture in Photoshop. I have used the following material settings:
I have used three Material for each vertex group part and import the texture using Image Texture on Color.

Front view
Top View
Final render

Battery:

Previous Render in Blender 2.49
Screw Deatails in Battery
Final Render In Cycles
Side View
Front View



Knitting Needles:



Previous Render in Blender 2.49




Brass Material Settings :


Head Details in Needle
Head Details in Needle
Final Render
